Our Products & Services
Bowen Technical Products & Services strives to pair over twenty years of experience in the foundry and steel mill melting and processing fields with the best of high temperature protective solutions, component repair capabilities and maintenance technologies. We want to satisfy our customers to the best of our abilities while motivated by a desire to see a job done well and right.
Bowen Technical Products & Services highly regarded expertise for creating and discovering simple, functional, and cost effective results can be attributed to the years of experience that the principals have with the challenges, concerns and economic trade-offs routinely faced by melting and processing environments. This application of hands-on knowledge protects customers from the many hidden pitfalls associated with quick, complex solutions.
Our high temperature protection materials and fabrications can protect your critical equipment and save you time and money.
We can custom design and fabricate a protective cover, sleeve or curtain from high temperature materials that can withstand high heat (up to 3000°F), molten metals and abrasion.
We have provided solutions for Nucor Corporation, Keystone Steel and Wire, Grede, Elkem Metals, Columbia Steel Castings, SSAB, Conductix-Wampfler, Cummins, Gerdau, Steel Dynamics and many more.
We also offer electrical insulation, and more.
Please look over these pages which represent some of the services and solutions we have provided.
For your most challenging equipment protection, repair and replacement needs, look no further.
Rated to 1000°F, these removable jackets provide outstanding resistance to extreme radiant and convective heat sources.

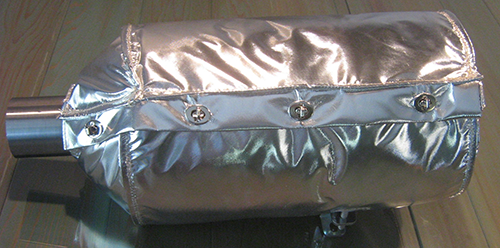

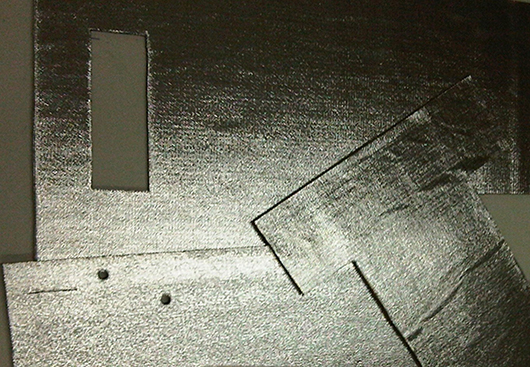

Custom fabricated heat shields provides excellent thermal protection of sensitive components from hot engine exhaust.

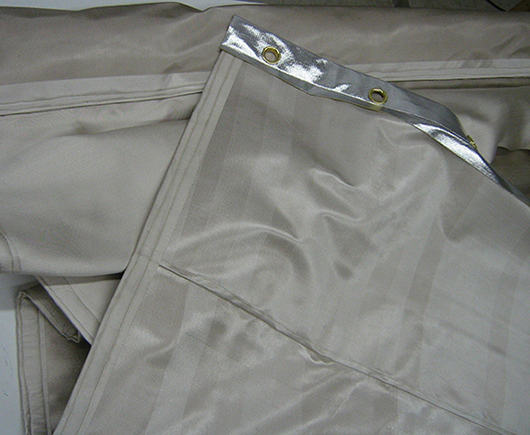

Custom designed and fabricated curtains

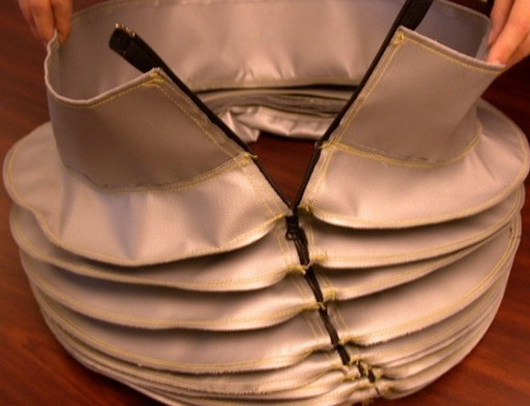

Bellows provide protection for equipment from external heat sources and debris infiltration

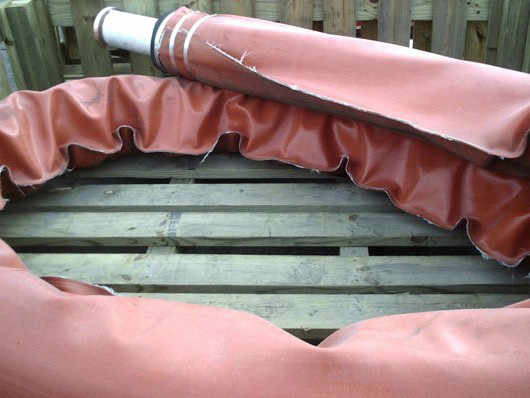

Molten metal resistant sleeves (silicone rubber coated fiberglass) are suitable for the most demanding applications. Large diameter fabricated sleeves can be supplied in any custom length.
Typical diameters range from 5" (127 mm) up to 24" (610 mm).

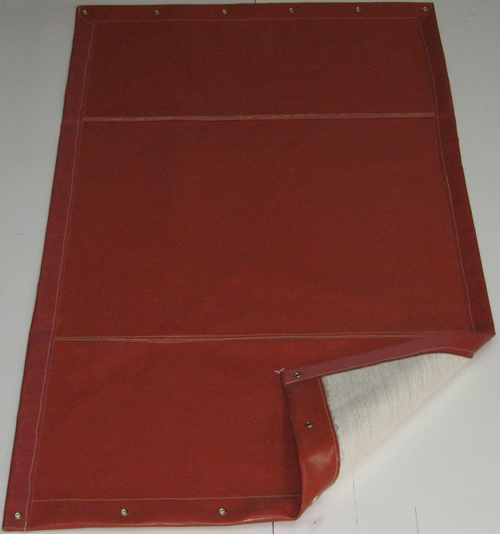

Removable insulation blankets are custom made to meet the conditions of the most harsh environments. In-house fabrication facilities allows the custom designed removable insulation blankets to be supplied in large or small quantities, with a variety of closure systems, and in almost any size. A description of the environmental conditions and the dimensions of the equipment in need of protection (or of the desired material itself) are all that is needed to allow the quoting of a solution best suited to meet your requirements!

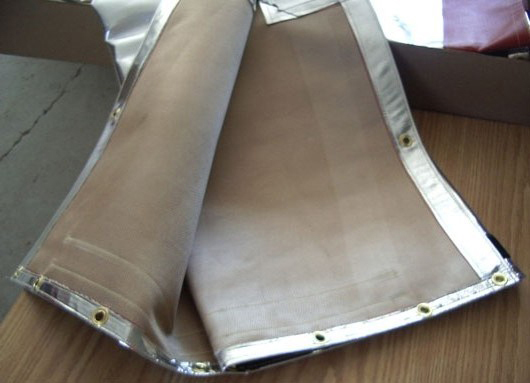

All blanket and cloth products can be fabricated into protective hanging curtains or custom sized blankets. Using a variety of associated accessories such as glass fiber, ceramic or stainless steel thread, non-magnetic grommets and abrasion edge trim, we can provide custom designed and fabricated protective curtains and blankets to meet almost environmental hazard. Different materials can be combined to achieve maximum molten metal and/or flame resistance. Applications range from molten splash resistance around foundries and arc-furnaces to large volume OEM parts on locomotive engines and various heavy equipment.

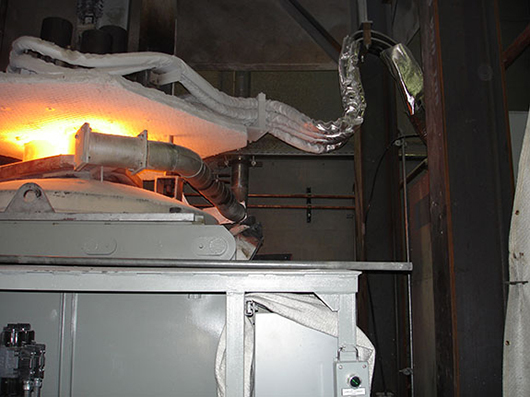

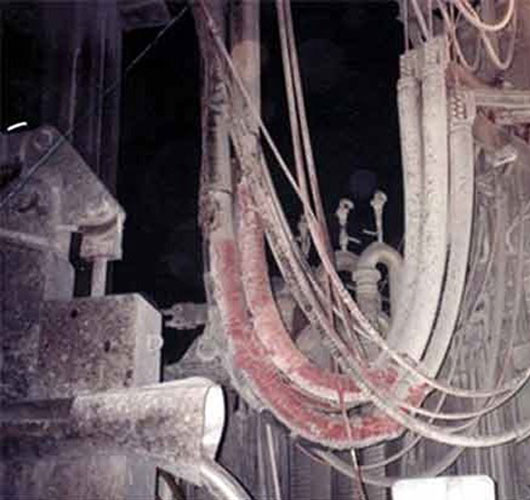

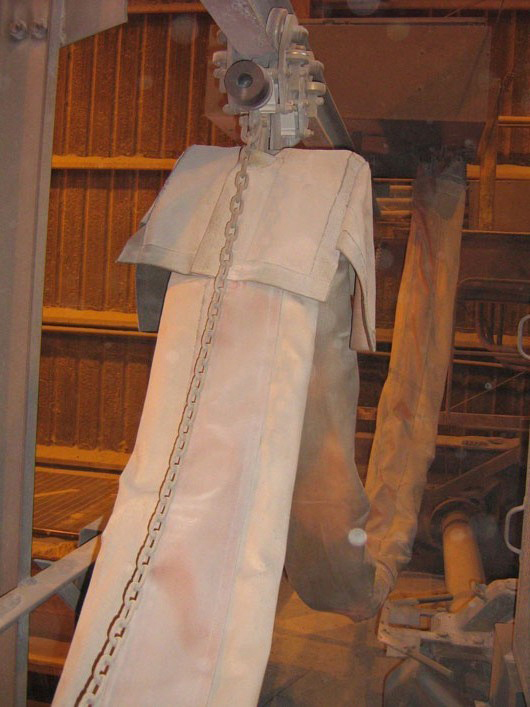

Molten metal resistant sleeves are designed specifically to protect water cooled power cables on electric arc and induction furnaces. Employing 96 oz. fiberglass thickly coated with silicone rubber, a custom fitted sleeve is fabricated with a Nomex hook and loop closure. Sleeves can be installed without disconnecting the water cooled cables. Molten metal resistant sleeves can withstand the heat, abrasion, bumping, flame and molten metal splash normally encountered in both AC and DC EAF furnace operations. Even splashes encountered during wet charges are repelled, allowing for continued operation of the EAF without unexpected cable failures. Molten metal resistant sleeves are non-conductive and will not affect the magnetic induction of the furnace. Available in a full range of sizes up to 12" (305 mm) diameter and beyond.

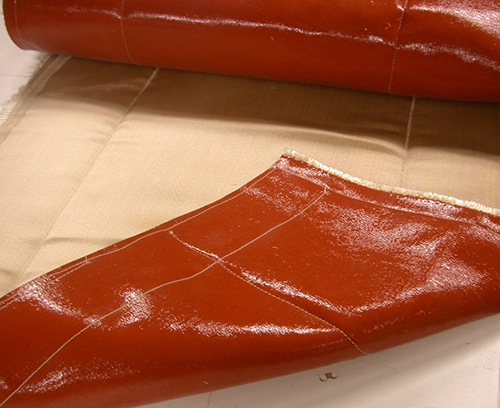

One of the heaviest molten splash shields in the world at almost 100ozyd² this 3-layer blanket is utilized by a leading steel producer to protect critical equipment from molten metal splash.

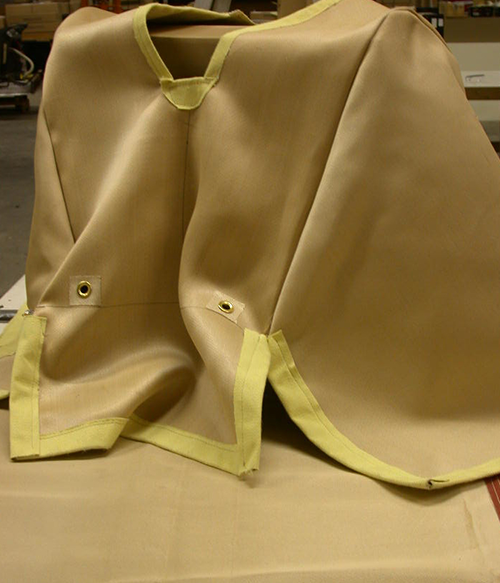

Protecting overhead crane festoon trolleys exposed to severe high temperature environments with high temperature jacketing will significantly reduce unscheduled maintenance and lost production time.
Rated from 500°F to 2000°F removable jackets ensure precise fitting to accommodate inlets and outlets, electrical connections, hanging brackets, controls, clamps, etc. to minimize heat loss
The silicone coating on this extremely heavy duty curtain (~96ozyd2) is designed to shed molten metal splash up to 3000°F. These curtains will protect the integrity of mechanical and electrical systems to ensure continuous production
